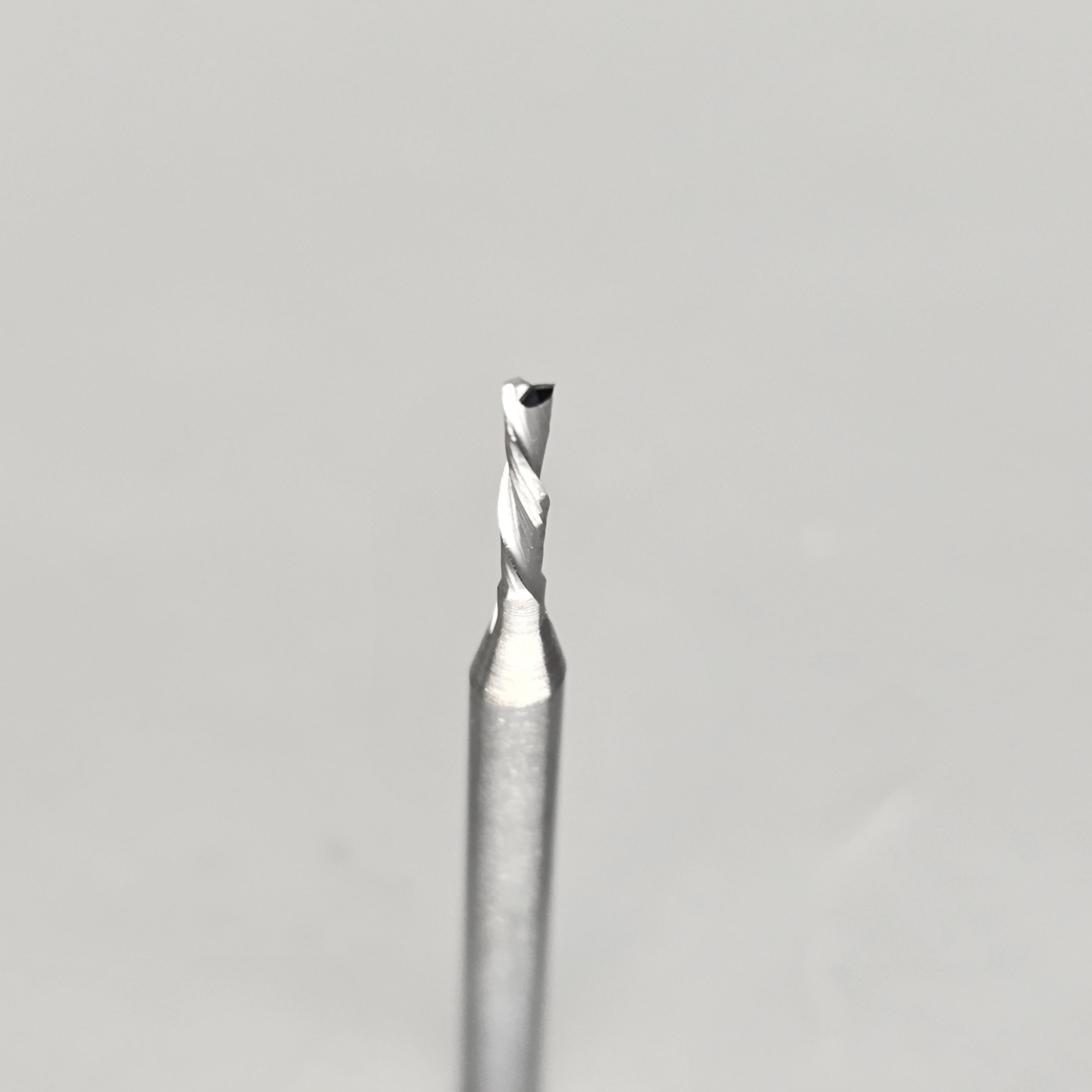

1/16″ 2 Flute Down-Cut Spiral bit


Spiral bits provide a shear cutting edge that leaves a smoother cut than standard router bits. The down cut spiral design provides the best top surface edges, ejecting chips away from the router when routing through material. This design also decreases the tendency to lift thin/small work pieces during CNC routing.

  • Cut diameter: 1/16″
  • Shank: 1/8″
  • Length: 2.25″
  • Cut length: 0.3″

Recommend Settings

  • RPM – 18000RPM
  • Plunge – 15IPM
  • Feed – 20IPM

Please note results will vary depending on wood type and machine rigidity. These numbers are meant to be a starting point and may need to be adjusted to obtain maximum efficiency for your particular setup.


60 in stock
